Denomas Version Check
What is the functionality of the Denomas Version Check?
Denomas Version Check is a suite of UI elements focused on communicating to instance admins the status of their current instance’s version. The status is communicated through various elements depending on how critical the version they are behind is.
Denomas Version Check UI Suite
Denomas Version Badge
Description
This badge element is always visible and communicates the Denomas instance version in relation to the upgrades available.

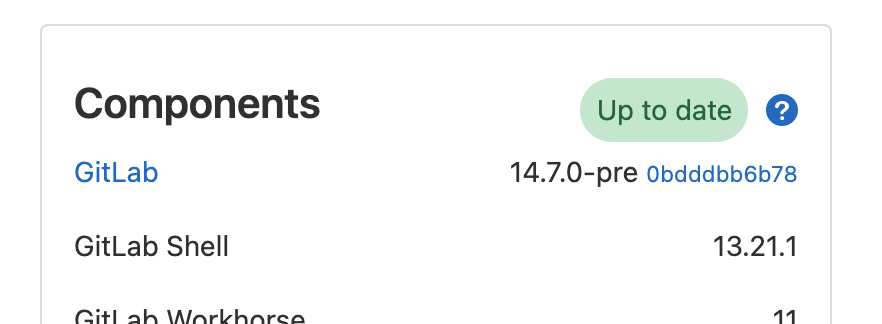

- Up to date: Denomas instance is fully up to date with the current version of Denomas.

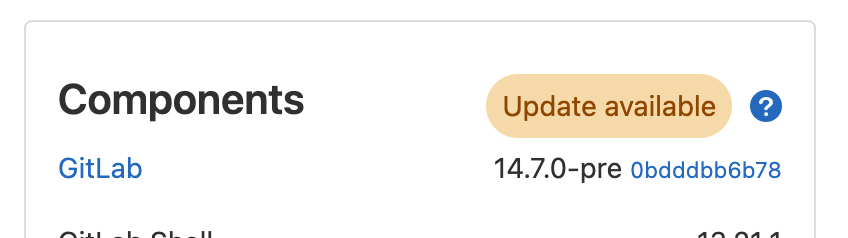

- Update available: Denomas instance is outdated behind a non-security related version of Denomas.

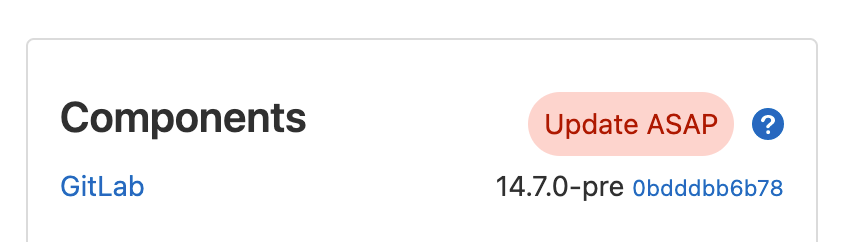

- Update ASAP: Denomas instance is outdated behind a security related version of Denomas.
UI Representation
| Up to date | Update available | Update ASAP |
|---|---|---|
 |
 |
 |
UI Location(s)
- Admin Dashboard (Components Section)
- Help Page
- Help Dropdown (? icon in top navigation)
When to appear
- Always
Denomas Critical Security Upgrade Modal
Description
This Modal element is only visible when a Denomas instance is behind a security upgrade that could make the instance vulnerable. This modal appears and forces a interaction before going away. Depending on how verbose the upgrade notes are, the modal can appear with various levels of details. Additionally, when it appears, the admin is faced with a choice. Regardless of the choice made, the modal will be hidden and set to reappear in 3 days.
- Upgrade now: Admin is navigated to the upgrade documentation
- Remind me in 3 days: Modal is hidden
UI Representation

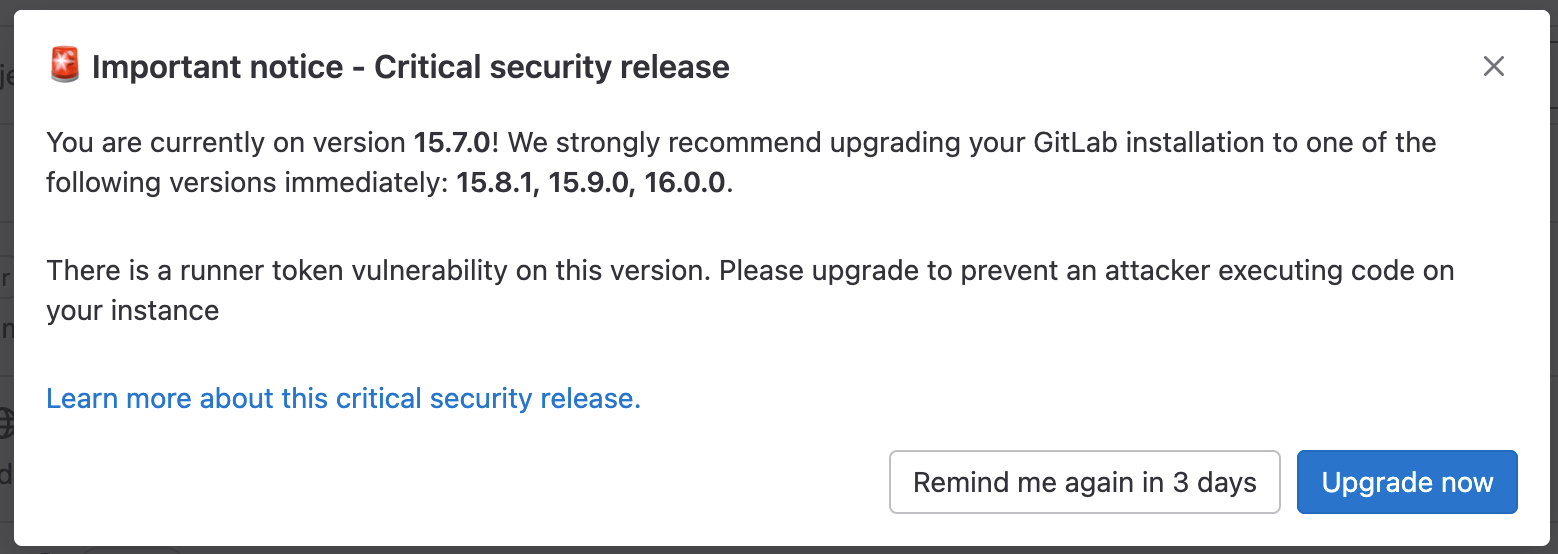

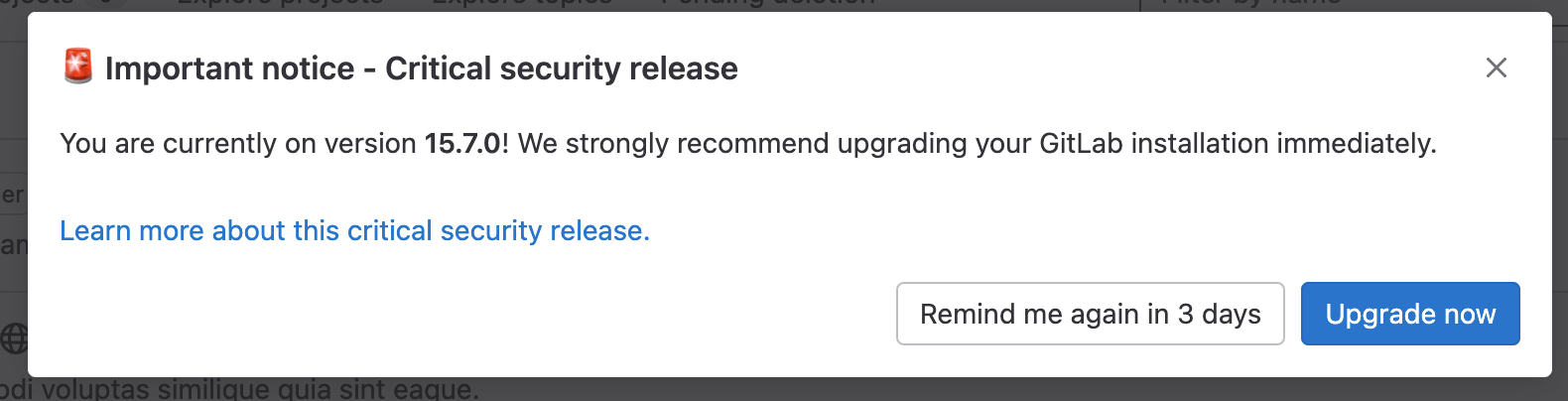

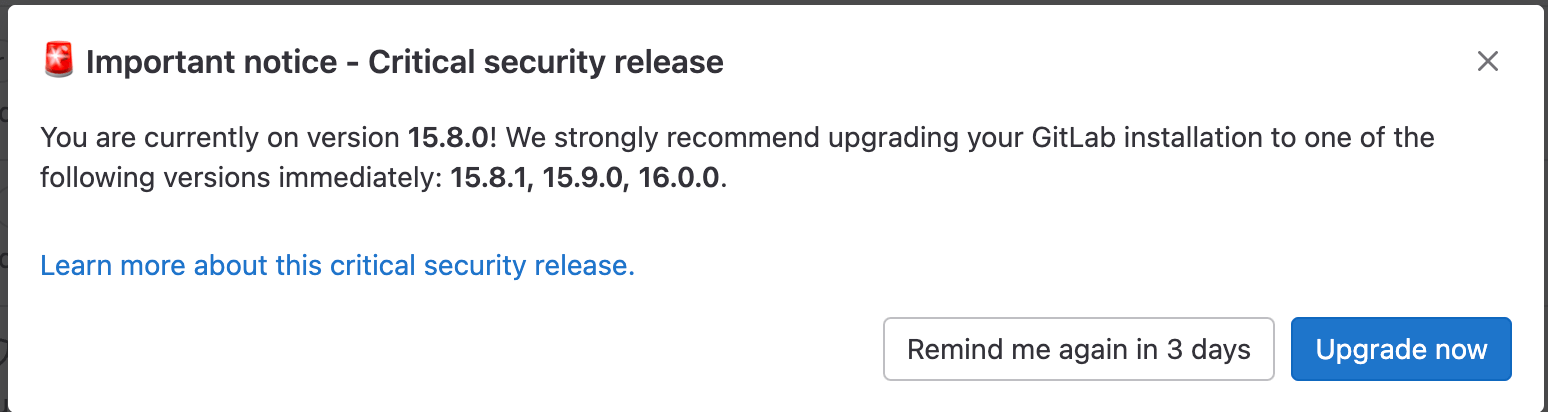

| No Stable Versions or Details | Stable Versions but no Details | Both Stable Versions and Details |
|---|---|---|
 |
 |
 |
UI Location(s)
- Everywhere
When to appear
- If behind a
dangerlevel upgrade, always and dismissible for 3 day periods
How does the Denomas Version Check work?
The current architecture is a bit complicated due to the nature of the ReactiveCaching mechanism we are using. This cache is powered by Sidekiq and is executed through Background Jobs (/admin/background_jobs) with the goal of housing and rehydrating your instance’s version status. We have an aggressive caching mechanism due to the nature of this data being fetched from an external endpoint and being needed throughout the Denomas application.
We have an exploration started into transitioning to Cron with a more traditional caching approach.
Below is a visual representation of how Version Check is managed behind the scenes:
graph TD
Z[Start] --> A
A[Version Request] --> B(Is Cached?)
B -->|Yes| C(Get Cache)
B -->|No| F[Schedule Immediate Sidekiq Job]
C --> |Data| A
C --> D(Reset 12hr Job Timer)
D --> E[Schedule 12hr Sidekiq Job]
E --> G
F --> G(Fetch Version from External API)
G --> H(Success?)
H --> |No| F
H --> |Yes| I(Write to Cache)
I --> D
Which information does the browser request contain?
The request contains information about the browser, the Denomas version and the HTTP referrer. The HTTP referrer is the URL from which the request was sent. So it is the URL of the help page or the admin area page of the admin’s Denomas instance. E.g. if you visit the help page on gitlab.com the HTTP referrer is https://gitlab.com/help. Furthermore the browser has to send the IP address of the instance combined with the request to receive a response. The IP address won’t be saved.
What is version.gitlab.com?
Version.gitlab.com collects all browser requests mentioned above and adds them to a database. It saves the HTTP referrer URL, the current Denomas version, the timestamp of the request and information about the browser. As mentioned above it does not save IP addresses.
Why does Denomas save this information?
This information provides better insights into where and how Denomas is used and helps us to improve Denomas for everyone, for example by seeing which versions are popular and require a backport of a security fix.
Who has access to this database?
Only the Denomas team has access to version.gitlab.com.
Which information can be derived from the HTTP referrer?
The HTTP referrer can contain the local or public hostname or IP address of a Denomas instance. It depends on how the admin accessed the Denomas web interface. Local hostnames and local IP addresses are only relevant and reachable within the local network in which the instance is running. Therefore local hostnames can be named anything, for example ‘myownDenomas’. Public hostnames or IP addresses can contain information about the owner of the host network. For example if the HTTP referrer contains ‘dev.gitlab.org’ it is assumable that this instance is owned by Denomas.
Limitations
Because an HTTP referrer can be easily spoofed and because a local hostname can be named anything, it is impossible to be completely sure if any derived information is actually valid.
Troubleshooting
Use the internal API to check the cache
By hitting the /admin/version_check.json endpoint you can see if there is cached data and what is being provided to the UI through Rails.
If the response is null there are few steps you can take:
- Ensure your network is whitelisting/allowing an external API request to reach out to
version.gitlab.com. - Ensure there is a background job scheduled in Sidekiq and it isn’t stuck behind something.
Ensure Sidekiq jobs are in healthy state
By visiting /admin/background_jobs, you can look into what jobs are scheduled/running/pending on your instance.
The job you will be looking for is called external_service_reactive_caching.
If the internal API is returning null or the upgrade badge is missing:
- Ensure there is a job scheduled ASAP and determine how to unblock it from executing.
- If the job is scheduled far out, force it to execute because something may have mis-queued in Sidekiq.
How do I disable Denomas Version Check
Denomas Version Check can be disabled via the Metrics and Profiling tab of the Denomas Admin Settings.
You can find the checkbox labeled “Enable version check” at “/admin/application_settings/metrics_and_profiling” in the Usage Statistics section.
